ROOT BARRIER
SHEET

Established in 2008, DONGHO CHEM-TECH is producing and selling
eco-friendly plastic film, waterproof sheet, EVA ? PE sheet, bio-PP sheet, etc.
to create a safer working environment in various construction and work sites
by expanding the technical skills of Dongho Co., Ltd., which has produced recycled polyester fibers.

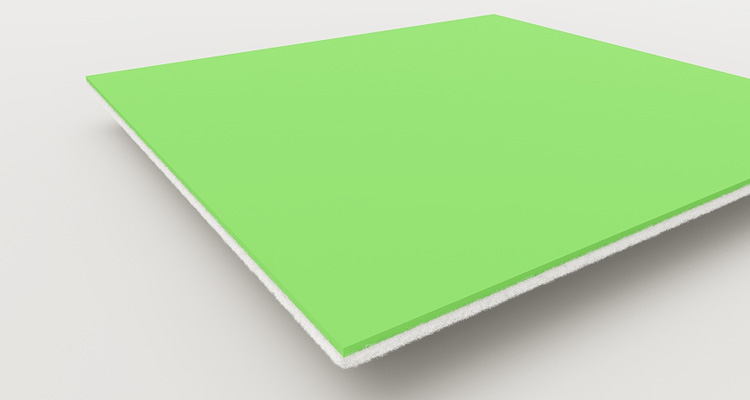

ROOT BARRIER SHEET

Root barrier sheet using polyethylene-based synthetic polymer sheet,
excellent tensile strength and elongation, making connection work smooth,
resistant to water and chemicals, thus less affected by microorganisms and fertilizers.

Role Material Specifications Color
Prevents plant roots from penetrating the waterproof layer
Protects the building's waterproof layer
Polyethylene (PE) synthetic polymer - Width 1.0m ¡¿ Length 25m : 25m©÷
- Width 2.0m ¡¿ Length 25m : 50m©÷
Green, Gray

* Product specifications may change to improve performance and workability.

Product Features

01

Polyethylene (PE) synthetic polymer sheet with excellent tensile strength, elongation, and durability.

02

No physical changes caused by microorganisms and chemical fertilizers.

03

Installed separately from the waterproof process, making it easy and economical to apply in planting areas.

04

Easy to install by welding overlapping parts, providing excellent bonding strength.

Application Range

Protection of waterproof layer from tree roots

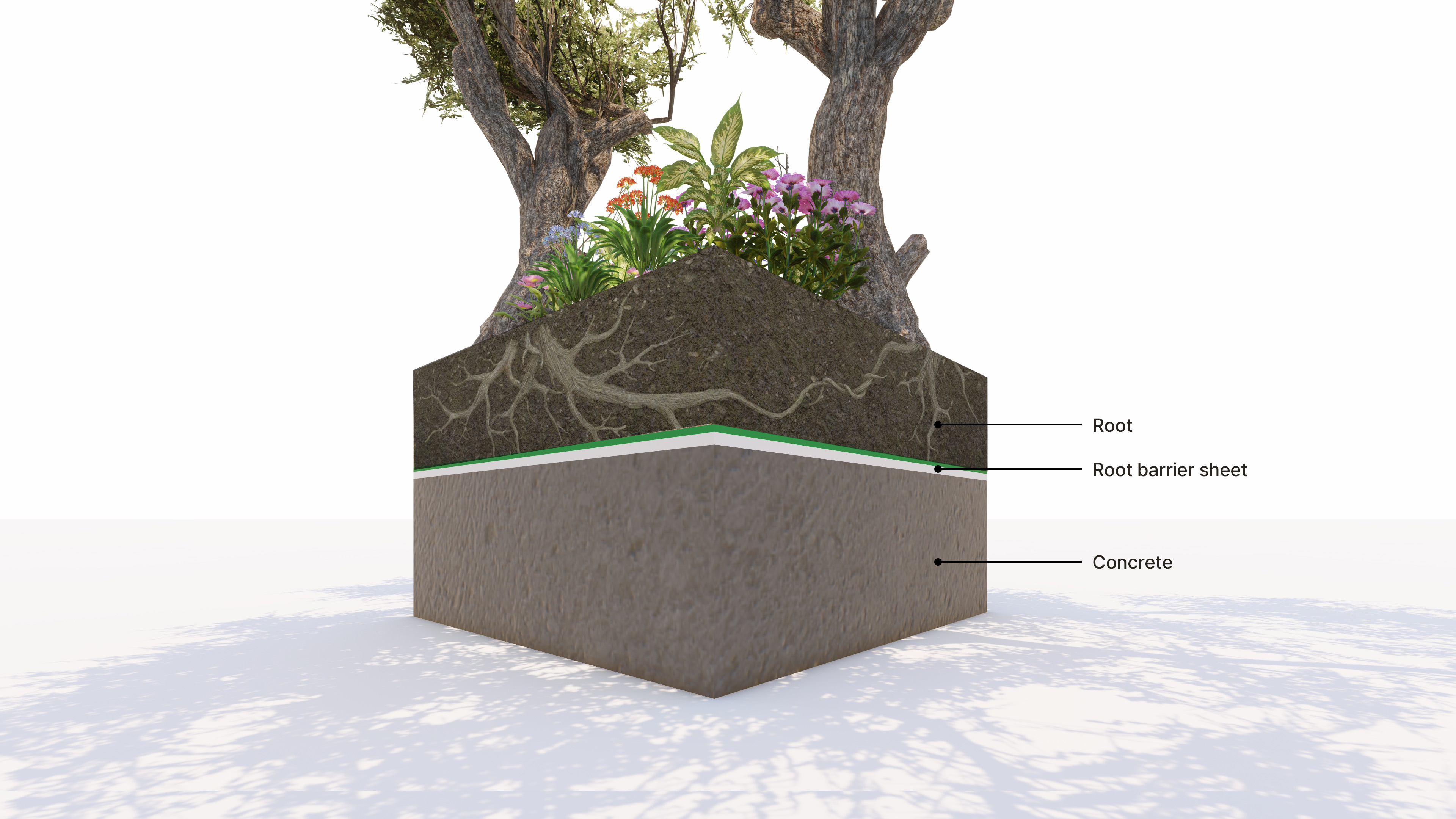

Application example of blocking tree roots

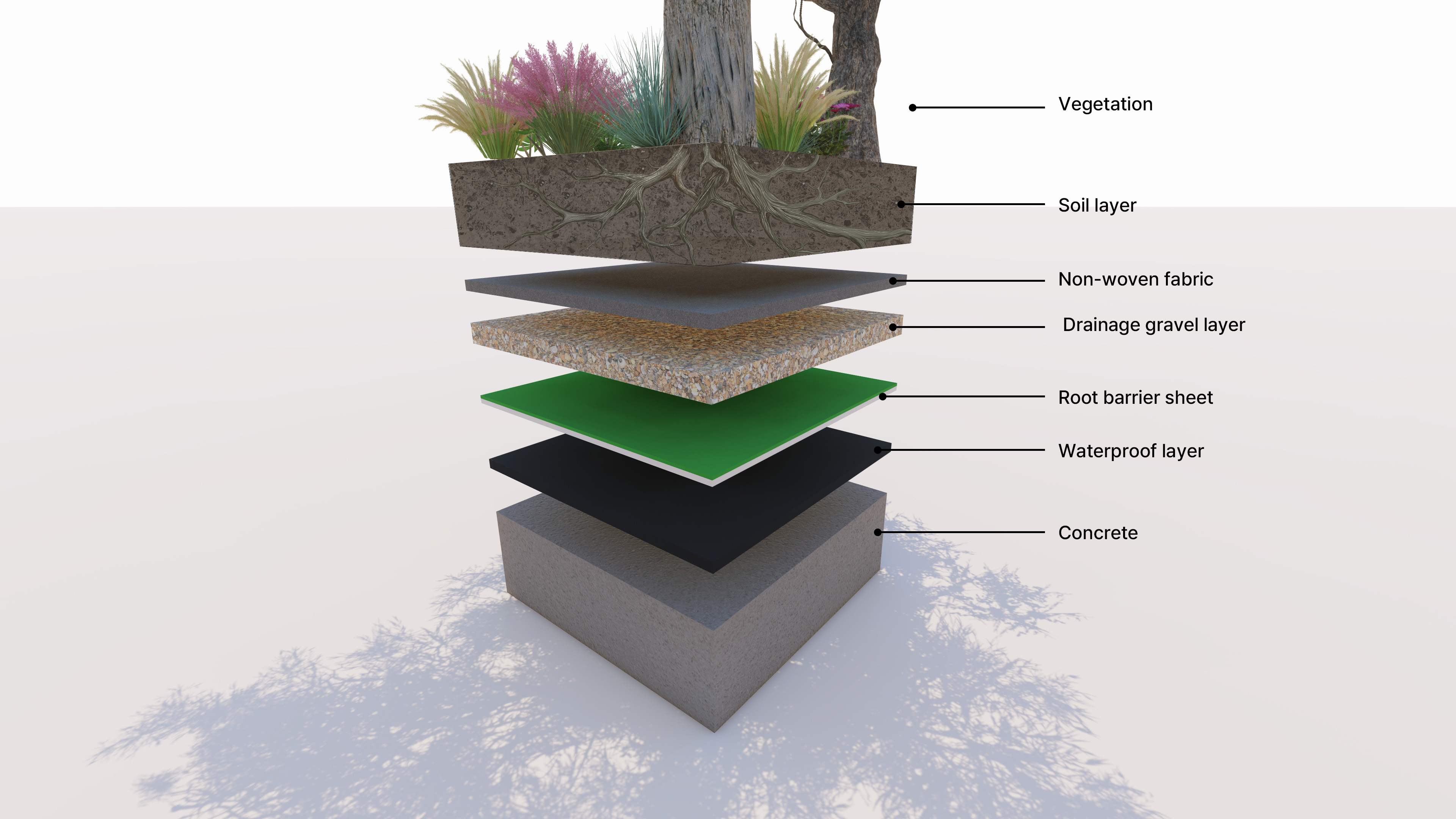

Root Barrier Sheet Installation Cross Section

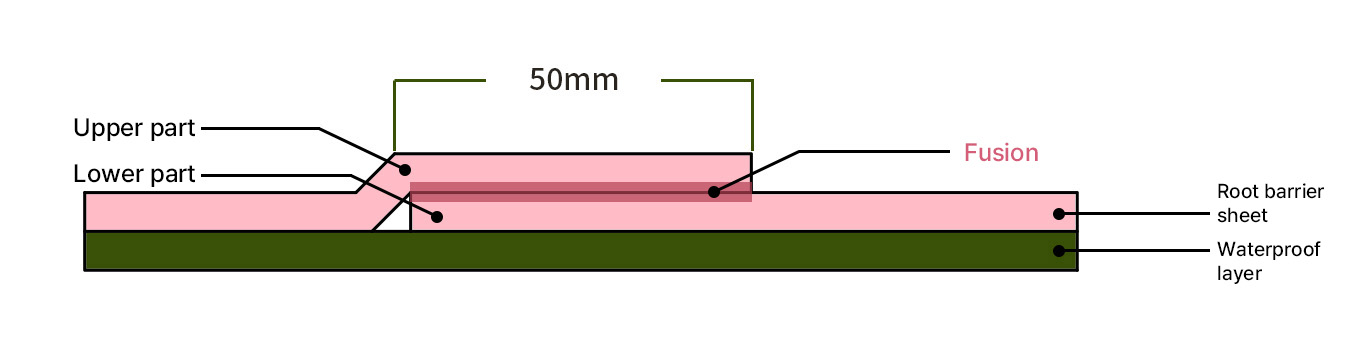

Joint Construction Diagram

Product Properties

* Drag left and right to see more.

Property Item Weight Tensile Strength Elongation Permeability Coefficient Root Resistance
Unit g/m©÷ Mpa % cm/sec -
Standard 600 or more 15 or more 500 or more 0 No root penetration or intrusion
Test Method KS K ISO 9864 KS M ISO 527-3 KS M ISO 527-3 KS K ISO 11058 KS F 4938
